Product Description

Product Description

Wind turbine blades: We utilize high strength glass fibre reinforced plastic and epoxy resin to make blades. The wind rotor operate well(stably and quietly). This kind of new aerofoil is elaborately designed by aerodynamic and hydromechanical specialists(experts). It start-up wind speed(or cut-in wind speed)is very low, and the wind energy (rotor power)coefficient is very high.

Generator: It is made up of the superior high strength permanent magnetic material. The volume is small and the weight is light, the generating electricity coefficient is high. The generator specialist(expert) use special electromagnetic technology to make the generator have extremely low start-up drag torque, which can make sure the VAWT start-up in the gentle breeze. The generating electricity coefficient, start-up performance and overspeed overload capacity of generator are all in leading position in this field.

Whole machine: It is made up of alloy aluminum/steel precision casting. It is widely used in air temperature: -30-60, high humidity, karaburan and salt mist(in some atrocious weather). It has high reliability. BF series small VAWT, whose appearance is beautiful, installation is easy. You can enjoy the clean (green)energy, at the same time, you will see a beautiful scenery.

  H Series H Series
Model LSF-H-100 LSF-H-300 LSF-H-500 LSF-H-1000 LSF-H-3000 (patent magnetic levitation generator) LSF-H-5000 (patent magnetic levitation generator) LSF-H-10KW (patent magnetic levitation generator) LSF-S-300
Power 100W PictOld
300W
500W 1000W 3000W 5000W 10KW 300W
Rotor diameter 0.7m 1.2m 1.3m 2m 3m 4m 6m 1m
Height of blades 0.8m 1.4m 1.6m 2.4m 3.6m 3.7m 6.6m 1.2m
Material of blades Glass Fiber Reinforced Plastic Glass Fiber Reinforced Plastic Glass Fiber Reinforced Plastic Glass Fiber Reinforced Plastic Glass Fiber Reinforced Plastic Glass Fiber Reinforced Plastic Glass Fiber Reinforced Plastic Glass Fiber Reinforced Plastic
Number of blades 3 5 5 5 3 5 5 2
Rated rotor speed 200r/min 180r/min 150r/min 150r/min 150r/min 100r/min 100r/min 150r/min
Rated wind speed 8-10m/s 8-10m/s 9-11m/s 9-11m/s 9-11m/s 11m/s 12m/s 8-10m/s
Start-up wind speed 1.7m/s 1.8m/s 2.2m/s 3m/s 3m/s 3.2m/s 3.8m/s 2.2m/s
Work wind speed 1.7-25m/s 1.8-25m/s 2.2-25m/s 3-25m/s 3-25m/s 3.2-25m/s 3.8-25m/s 2.2-25m/s
Survival wind speed 50m/s 50m/s 50m/s 50m/s 50m/s 50m/s 50m/s 50m/s
Output voltage AC12V AC12V/24V AC24/48V AC48/110V/220V AC220V/380V AC220V/380V AC380V/600V AC12/24V
Tower type  guy cable tower  guy cable tower  guy cable tower  guy cable tower  free standing tower  free standing tower  free standing tower  guy cable tower
Height of tower 6m 8m 8m 8m 8m 8m 10m 6-8m
Suggested batteries 1PCS 12V56AH 2 PCS 12V100AH 4 PCS 12V80AH 4 PCS 12V100AH 18 PCS 12V100AH 18 PCS 12V120AH 32PCS 12V 200AH 2 PCS 12V100AH

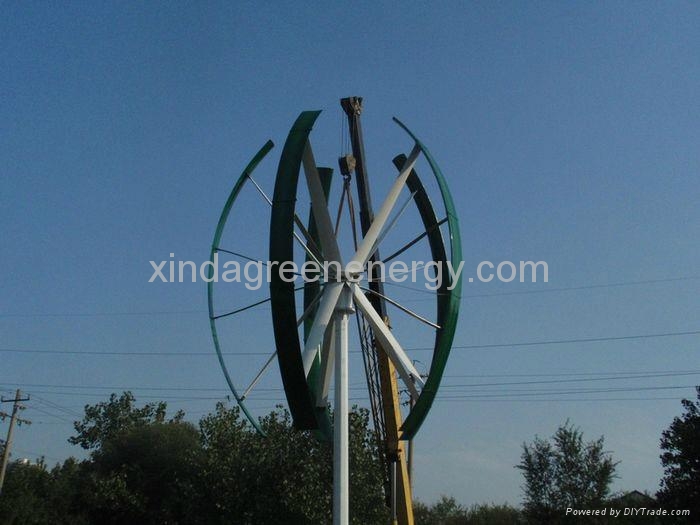

Product Image
