Product Description
generator style: permanent magnetism 3 phase AC
• generator material: NdFeB,F grade copper wire
• rated rotate speed:80 RPM
• rated wind speed: 8m/s
• rated power:500W
• start up wind speed:2m/s
• cut in wind speed:3m/s
• working wind speed:3-25m/s
• the max power:550W
• the diameter of wind rotor:2.0m
• blades number: 7pcs
• blades length:1120mm
• blades width: 400mm
• the height of tower:6m
• output voltage (DC):24V
• output controller system: charger controller,inverter
• battery reference:12V 100ah 2pcs
• design life:15-20 years
enerator style: permanent magnetism 3 phase AC
• generator material: NdFeB,F grade copper wire
• rated rotate speed:80 RPM
• rated wind speed: 8m/s
• rated power:300W
• start up wind speed:2m/s
• cut in wind speed:3m/s
• working wind speed:3-25m/s
• the max power:350W
• the diameter of wind rotor:2.0m
• blades number: 5pcs
• blades length:1120mm
• blades width: 400mm
• the height of tower:6m
• output voltage (DC):24V
• output controller system: charger controller,inverter
• battery reference:12V 100ah 2pcs
• design life:15-20 years

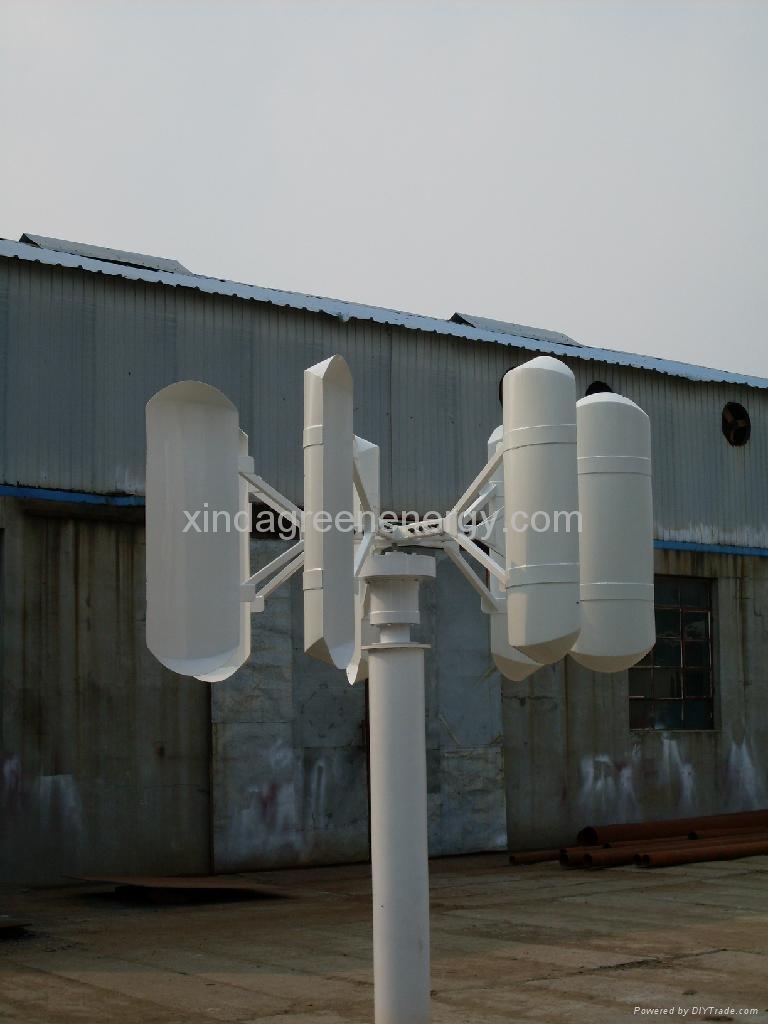

Product Image
